Morse Cutting Tools

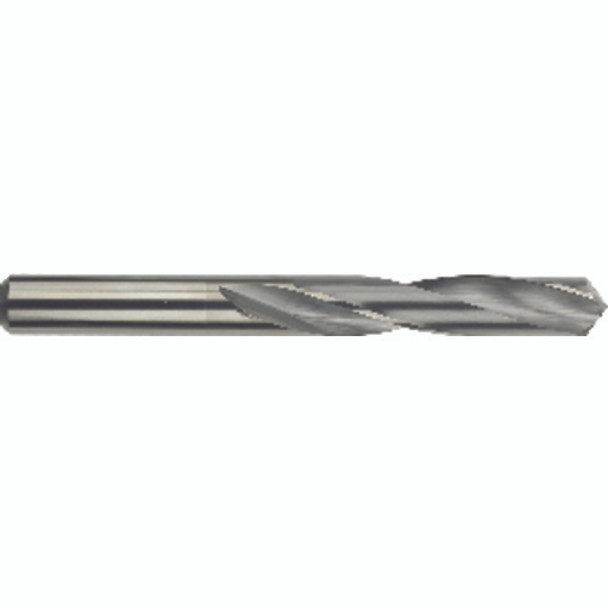

Q Dia. x 0.332" Shank x 2-1/2" Flute Length x 4" OAL, Standard, 118 Degree, AlTiN, 2 Flute, External Coolant, Round Solid Carbide Drill Series/List #5374T MT1292196

(No reviews yet) Write a Review
SKU:
F120085479
UPC:
686125921965
MPN:
92196
Condition:
New
Availability:
Usually Ships Out Within 2 Business Days
Price: $84.34

Description

Solid Carbide Standard Length Drill Recommended for drilling cast iron, non-ferrous alloys, plastics, aluminum and other easily machined materials Solid Carbideoffer excellent hardness, wear resistance and heat resistance for higher cutting speeds and longer tool life Tolerance +0/-.0005 Titanium Aluminum Nitride (TiALN) Coatingis an excellent all around coating that increases surface hardness, wear resistance, heat resisteance for higher cutting speeds and tool life.Country of OriginUSAWarning-Proposition 65- For Californian Users onlyWARNING: This product contains a chemical known to the State of California to cause cancer or Birth defects. For more information go towww.P65Warnings.ca.gov Drill Bit Size / Cutting Diameter (DC) Q Tool Type Drill Decimal Equivalent 0.332" Point Shape Split Drill Bit Size / Cutting Diameter (DC) - Letter /xa0Wire Gauge Q Measurement Type Letter Length Group Standard Series/List # 5374 Coating TiAlN Usable Length (LU) u200e2-1/2" Connection Diameter Machine Side (DCONMS) 0.332" Length Chip Flute (LCF) u200e2-1/2" Coolant Supply Property (CSP) External Overall Length (OAL) 4" Point Angle (SIG) 118 Degrees Flute Count (NOF) 2 Flute Helix Angle (FHA) 25 Degrees Cutting Direction (HAND) Right Hand Shank Type Round Body Material Carbide Cutting Edge Material Carbide
