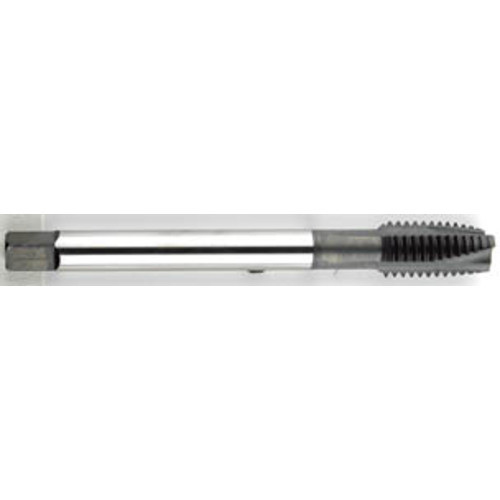

M10 x 1.5 Dia. - D6 - 3 FL - Premium - HSS - Black Oxide - Plug - Spiral Point Tap Series/List #2088M MT4230580

HPT†- High Performance Tap - DIN Length Recommended for steels, steel alloys, stainless steels, titanium alloys and a wide variety of materials up to 36Rc hardness. Spiral†Point Tapsare designed fo refficient tapping of through holes and blind holes with adequate depth for chip accumulation at the bottom of the hole. The shearing action of the point provides freer cutting action and ejects the chips ahead of the tap, eliminating chip evacuation problems and chip damage to the threads. Shallower flutes also result in greater tap strength, allowing for higher cutting speeds. Plug†Style(3-5 thread chamfer) is the most common chamfer used for tapping applications in through holes and blind holes with sufficient bottom clearance. CNC Reduced Neck Designenhances chip evacuation and cutting fluid flow to the cutting teeth for reduced friction, heat and galling. Also reduces contact between the tap the work piece. P/M Powder Metallurgy High Speed SteelPremium Steel Engineered For:† Hardness / Wear Resistance / Tool / Heat Resistance / Toughness and Strength / Performance under Difficult Cutting Conditions / Higher Cutting Speeds / Increased ProductivityCountry of OriginUSAWarning-Proposition 65- For Californian Users onlyWARNING: This product contains a chemical known to the State of California to cause cancer or Birth defects. For more information go towww.P65Warnings.ca.gov Thread Size M10xa0xxa01.5 Cutting Edge Material HSSPM Thread Diameter Size (TDZ) M10 Tool Type High Performance Tap Thread Pitch (TP) 1.5 mm Applicable Material Super-Alloys / Titanium Thread Tolerance Class (TCTR) D6 Style Spiral Point Usable Length (LU) 22 mm Cutting Direction (HAND) Right Overall Length (OAL) 100 mm Coolant Supply Property (CSP) External Chamfer Plug Measurement Type Metric Coating Black Series/List # 2088M Flute Count (NOF) 3
