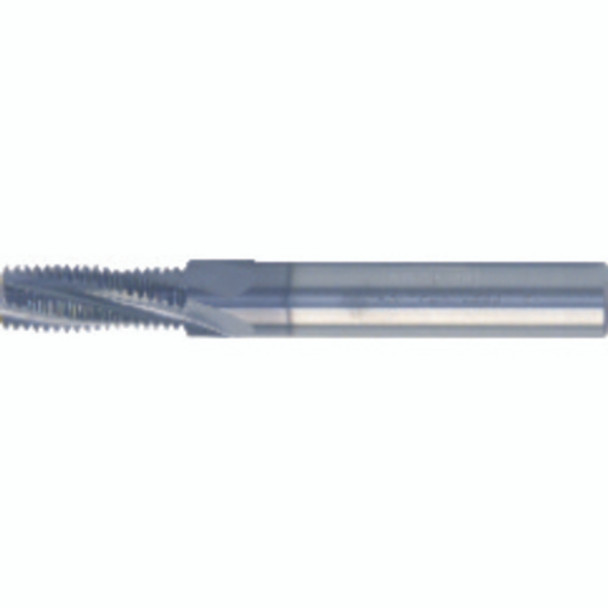

8-36 - Helical Flute AlTiN Thread Mill - UN Thread Series/List #5900 MT3098601

Solid Carbide Thread Mills Reduced Tool Inventory. One Thread Mill Can Produceinternal & external threads. left hand & right hand threads, different thread diameters of the same pitch and through hole & blind hole threads. Requires Less Power.Produce coarse pitches and large diameters on lower H.P. machines. Tough Threading Applications.Thread harder, difficult-to-machine & gummy materials that cause problems for taps. Helical Flutesfor reduced cutting forces, improved thread qualtiy & increased tool life. Precision Threading.Control pitch diameter precisely via programming. Precision thread depth control & positional accuracy. Produce 100% thread heights. Produce full threads to within one pitch of a shoulder or blind hole bottom. Easily Removed if Broken.No need for EDM burn-out. 10% Micrograin Carbideoffers higher cutting speeds, high rigidity, excellent hardness, wear resistance and heat resistance and long tool life. ALTiN - Alumimum Titanium Nitrideis an excellent all-around coating that is especially recommended for high thermal stress applications including dry machining, abrasive materials and difficult-to-machine materials. Benefits include higher cutting speeds and longer tool life.Country of OriginUSAWarning-Proposition 65- For Californian Users onlyWARNING: This product contains a chemical known to the State of California to cause cancer or Birth defects. For more information go towww.P65Warnings.ca.gov Thread Size #8 Coating AlTiN Threads per Inch (TPI) 36 Application External Thread Milling Thread Standard NF Applicable Material Steel |Stainless Steel |Cast Iron |Hard Materials |Hi Temp Alloys | Connection Diameter Machine Side (DCONMS) 1/8" Flute Helix Angle (FHA) 20 Degrees Cutting Diameter (DC) 0.115" Cutting Edge Material Carbide Overall Length (OAL) 2" Usable Length (LU) 1/4" Flute Count (NOF) 3 Series/List # 5900 Coolant Supply Property (CSP) External Coolant Body Material Carbide Shank Type Round
