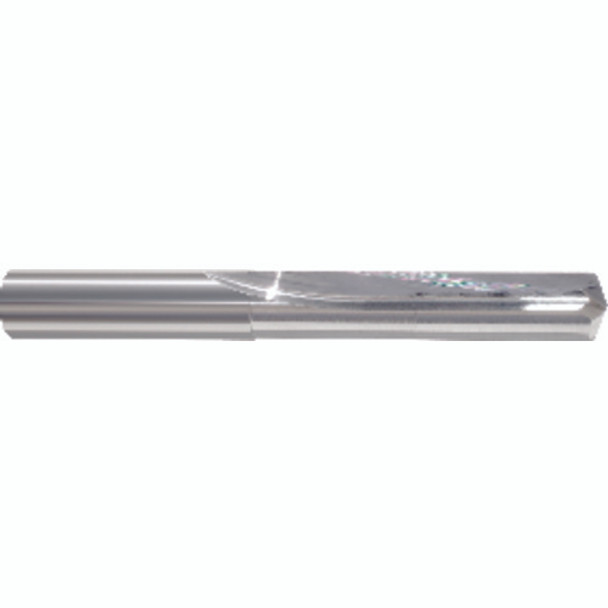

7/16" Dia. x 7/16" Shank x 2-1/16" Flute Length -7/16" OAL, Straight Flute, 140 Degree, AlTiN, 2 Flute, External Coolant, Round Solid Carbide Drill Series/List #5376T MT1392788

?Solid Carbide Straight Flute Drill Recommended for hardened, high strength & abrasive materials Produce close tolerance holes in stainles steels, alloy steels, aerospace alloys, exotic alloys, cryogenic alloys and other materials 40Rc hardness and higher Solid Carbideoffers excellent hardness, wear resistance and heat resistance for higher cutting speeds and longer tool life High rigidity enchances hole accuracy and quality 2 Flute - 140? Notch Point Tolerance +0/-.0005 Titanium Aluminum Nitride (TiALN) Coatingis an excellent all around coating that increases surface hardness, wear resistance, heat resistance, chip flow and resists chip welding.Country of OriginUSAWarning-Proposition 65- For Californian Users onlyWARNING: This product contains a chemical known to the State of California to cause cancer or Birth defects. For more information go towww.P65Warnings.ca.gov Drill Bit Size / Cutting Diameter (DC) 7/16" Tool Type Drill Drill Bit Size / Cutting Diameter (DC) - Inch 7/16" Point Shape Notch Decimal Equivalent 0.4375" Measurement Type Inch Length Group Straight Flute Series/List # 5376 Coating TiAlN Usable Length (LU) u200e2-1/16" Connection Diameter Machine Side (DCONMS) 7/16" Length Chip Flute (LCF) u200e2-1/16" Coolant Supply Property (CSP) External Overall Length (OAL) u200e3-7/16" Point Angle (SIG) 140 Degrees Flute Count (NOF) 2 Flute Helix Angle (FHA) 0 Degrees Cutting Direction (HAND) Right Hand Shank Type Round Body Material Carbide Cutting Edge Material Carbide
