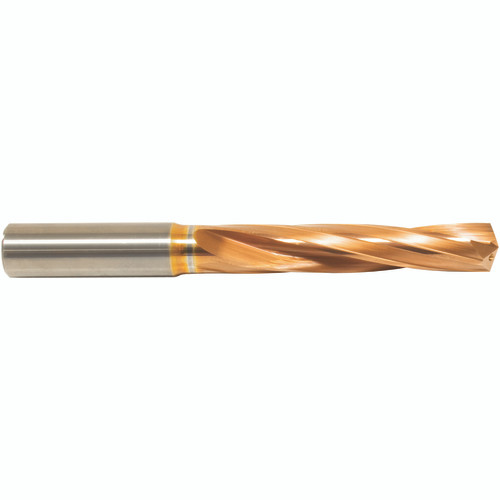

6 mm Dia. x 1/4" Shank x 2" Flute Length x 4" OAL, 5xD, 135 Degree, ZrCN, 2 Flute, External Coolant, Round Solid Carbide Drill Series/List #NG04 MT711443693

Country of OriginUSA Drill Bit Size / Cutting Diameter (DC) 6 mm Cutting Edge Material Carbide Decimal Equivalent 0.2362" Tool Type Drill Drill Bit Size / Cutting Diameter (DC) - Metric 6 mm Point Shape Self Centering Length Group 5xD Measurement Type Metric Coating ZrCN Series/List # DBIN26 Applicable Material Aluminum / Non-Ferrous Materials Usable Length (LU) 2" Connection Diameter Machine Side (DCONMS) 1/4" Length Chip Flute (LCF) 2" Coolant Supply Property (CSP) External Overall Length (OAL) 4" Point Angle (SIG) 135 Degrees Flute Count (NOF) 2 Flute Helix Angle (FHA) 15 Degrees Cutting Direction (HAND) Right Hand Shank Type Round Body Material Carbide
