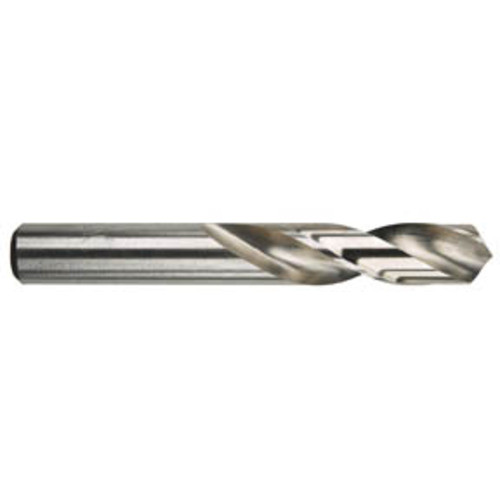

5/64" Dia. Screw Machine Drill, 118 Degrees, TiN, Series/List # 1435 MT1495116

Screw Machine Length Drills Developed primarily for use in screw machines, these short length drills provide maximum rigidity resulting in increased hole accuracy and extended tool life. Recommended for drilling a wide variety of materials including non-ferrous materials and low tensile strength steels. Titanium Nitride (TiN) Coatingincreases tool surface hardness, wear resistance, heat resistance, chip flow and resists chip welding. Enhanced hole quality at higher speeds and feeds.Country of OriginUSAWarning-Proposition 65- For Californian Users onlyWARNING: This product contains a chemical known to the State of California to cause cancer or Birth defects. For more information go towww.P65Warnings.ca.gov Measurement Type Inch Cutting Edge Material HSS Drill Bit Size / Cutting Diameter (DC) 5/64" Flute Length 11/16" Drill Bit Size / Cutting Diameter (DC) - Inch 5/64" Flute Type Standard Decimal Equivalent 0.0781 Overall Length (OAL) u200e1-11/16" Angle 118 Degrees Shank Type Straight Shape Screw Machine Style General Purpose Coating TiN Series/List # 1435 Cutting Depth 11/16"
