Morse Cutting Tools

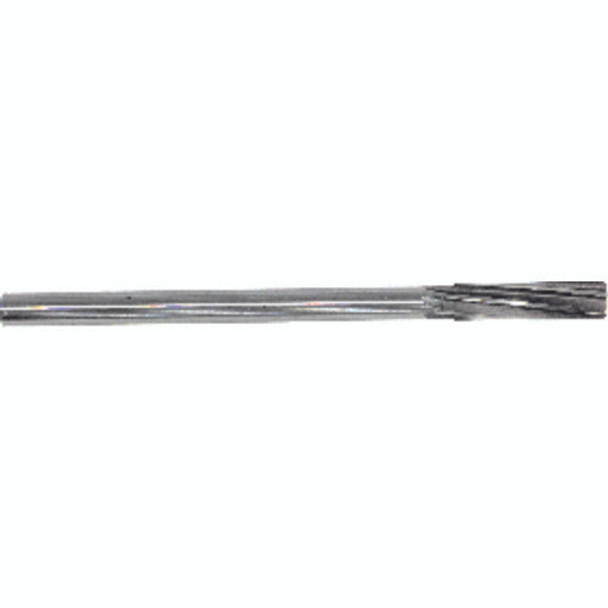

5/64" Dia. 4-Flute, Round Shank, Spiral Flute, HSS, 3" OAL Chucking Reamer Series/List #1653 MT5121702

(No reviews yet) Write a Review
SKU:
F120088702
UPC:
686125217020
MPN:
21702
Condition:
New
Availability:
Usually Ships Out Within 2 Business Days
Minimum Purchase:
5 units
Price: $22.06

Description

Straight Shank Right Hand Helix Chucking Reamer† Right Hand Helixpulls chips out of the hole in blind hole and through hole applications, bridges interruptions and provides better finish and sizing than straight flute reamers. 45 Degree chamfer for reaming most materials Diameter Tolerance: Up to .5000 -- +.0002/-0 .5005 to .6250 -- +.0003/-0 .6255 to 1.5000 -- +.0001/+.0004Country of OriginUSAWarning-Proposition 65- For Californian Users onlyWARNING: This product contains a chemical known to the State of California to cause cancer or Birth defects. For more information go towww.P65Warnings.ca.gov Cutting Diameter (DC) 5/64" Shank Type Round Usable Length (LU) 3/4" Flute Type Spiral Connection Diameter Machine Side (DCONMS) 0.0720" Length Chip Flute (LCF) 3/4" Flute Count (NOF) 4 Measurement Type Inch Overall Length (OAL) 3" Series/List # 1653 Cutting Direction (HAND) Right Hand Decimal Equivalent 0.0781" Cutting Edge Material HSS
