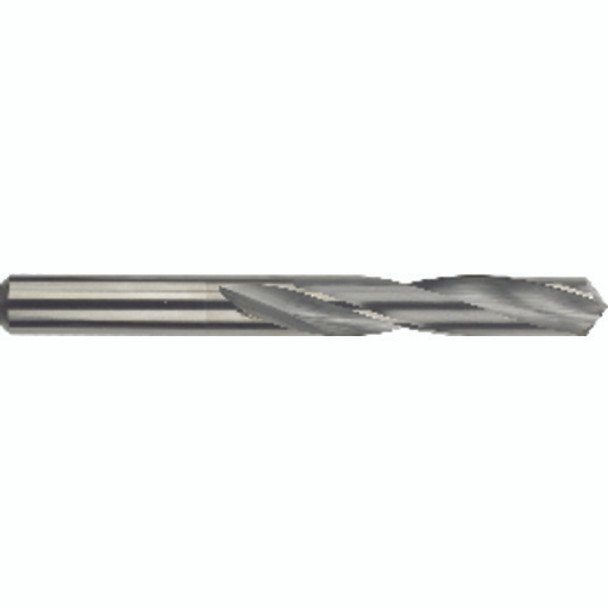

3/8" Dia. /8" Shank x 2-3/4" Flute Length x 4-1/4" OAL, Standard, 118 Degree, AlTiN, 2 Flute, External Coolant, Round Solid Carbide Drill Series/List #5374T MT1292206

Solid Carbide Standard Length Drill Recommended for drilling cast iron, non-ferrous alloys, plastics, aluminum and other easily machined materials Solid Carbideoffer excellent hardness, wear resistance and heat resistance for higher cutting speeds and longer tool life Tolerance +0/-.0005 Titanium Aluminum Nitride (TiALN) Coatingis an excellent all around coating that increases surface hardness, wear resistance, heat resisteance for higher cutting speeds and tool life.Country of OriginUSAWarning-Proposition 65- For Californian Users onlyWARNING: This product contains a chemical known to the State of California to cause cancer or Birth defects. For more information go towww.P65Warnings.ca.gov Drill Bit Size / Cutting Diameter (DC) 3/8" Tool Type Drill Drill Bit Size / Cutting Diameter (DC) - Inch 3/8" Point Shape Split Decimal Equivalent 0.375" Measurement Type Inch Length Group Standard Series/List # 5374 Coating TiAlN Usable Length (LU) u200e2-3/4" Connection Diameter Machine Side (DCONMS) 3/8" Length Chip Flute (LCF) u200e2-3/4" Coolant Supply Property (CSP) External Overall Length (OAL) u200e4-1/4" Point Angle (SIG) 118 Degrees Flute Count (NOF) 2 Flute Helix Angle (FHA) 25 Degrees Cutting Direction (HAND) Right Hand Shank Type Round Body Material Carbide Cutting Edge Material Carbide
