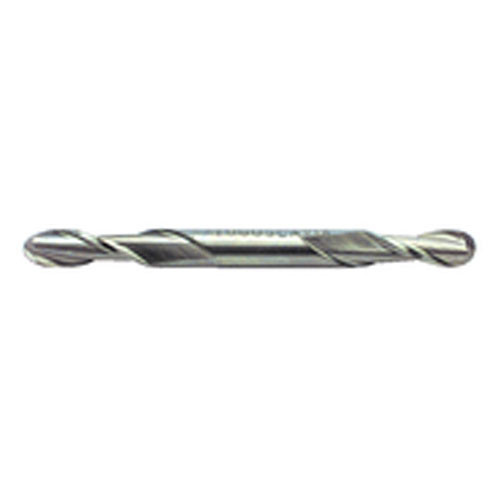

3/32" Dia. /16" Shank x 9/32" DOC x 2-1/4" OAL, HSSCo Uncoated, 2 Flute, Ballnose End Mill MT2543202

2-Flute Ball Nose Double End Mills Ball Noseend mills are designed for milling die cavities, fillets, round bottom holes and radius bottom slots 2-fluteend mills provide increased chip capacity Center Cuttingend allows for pluge cutting like a drill into solid materialsCountry of OriginUSAWarning-Proposition 65- For Californian Users onlyWARNING: This product contains a chemical known to the State of California to cause cancer or Birth defects. For more information go towww.P65Warnings.ca.gov Cutting Diameter (DC) 3/32" Tool Type Double-End Connection Diameter Machine Side (DCONMS) 3/16" Length Group Miniature Depth of Cut Maximum (APMX) 9/32" End Shape Ball Overall Length (OAL) u200e2-1/4" Coolant Supply Property (CSP) External Cutting Edge Material HSSCo Style Finishing Coating Uncoated Decimal Equivalent 0.09375" Flute Count (NOF) 2 Measurement Type Inch Shank Type Plain Series/List # 1890 Applicable Material Super-Alloys / Titanium Center Cutting Yes Corner Radius (RE) 0.046"
