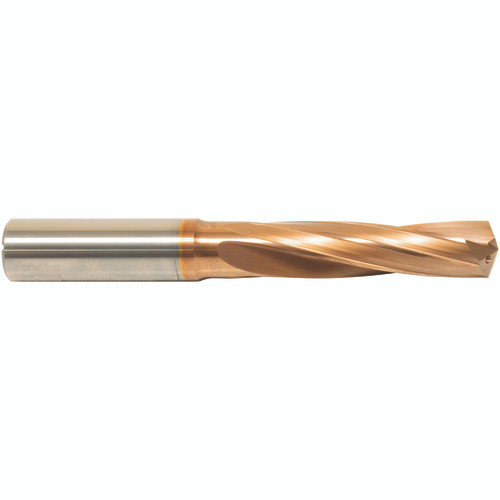

3/16" Dia. /16" Shank x 1-1/8" Flute Length " OAL, 3xD, 135 Degree, ZrCN, 2 Flute, External Coolant, Round Solid Carbide Drill Series/List #NG04 MT711443529

Country of OriginUSA Drill Bit Size / Cutting Diameter (DC) 3/16" Cutting Edge Material Carbide Drill Bit Size / Cutting Diameter (DC) - Inch 3/16" Tool Type Drill Decimal Equivalent 0.1875" Point Shape Self Centering Length Group 3xD Measurement Type Inch Coating ZrCN Series/List # DBIN26 Applicable Material Aluminum / Non-Ferrous Materials Usable Length (LU) u200e1-1/8" Connection Diameter Machine Side (DCONMS) 3/16" Length Chip Flute (LCF) u200e1-1/8" Coolant Supply Property (CSP) External Overall Length (OAL) 3" Point Angle (SIG) 135 Degrees Flute Count (NOF) 2 Flute Helix Angle (FHA) 15 Degrees Cutting Direction (HAND) Right Hand Shank Type Round Body Material Carbide
