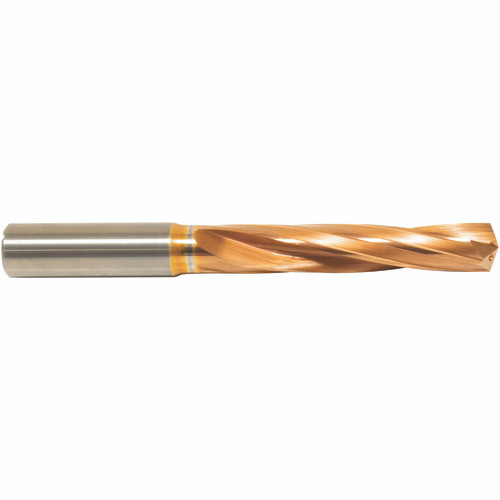

29/64" Dia. x 1/2" Shank " Flute Length x 5" OAL, 5xD, 135 Degree, ZrCN, 2 Flute, External Coolant, Round Solid Carbide Drill Series/List #NG04 MT711443743

Country of OriginUSA Drill Bit Size / Cutting Diameter (DC) 29/64" Cutting Edge Material Carbide Drill Bit Size / Cutting Diameter (DC) - Inch 29/64" Tool Type Drill Decimal Equivalent 0.4531" Point Shape Self Centering Length Group 5xD Measurement Type Inch Coating ZrCN Series/List # DBIN26 Applicable Material Aluminum / Non-Ferrous Materials Usable Length (LU) 3" Connection Diameter Machine Side (DCONMS) 1/2" Length Chip Flute (LCF) 3" Coolant Supply Property (CSP) External Overall Length (OAL) 5" Point Angle (SIG) 135 Degrees Flute Count (NOF) 2 Flute Helix Angle (FHA) 15 Degrees Cutting Direction (HAND) Right Hand Shank Type Round Body Material Carbide
