Morse Cutting Tools

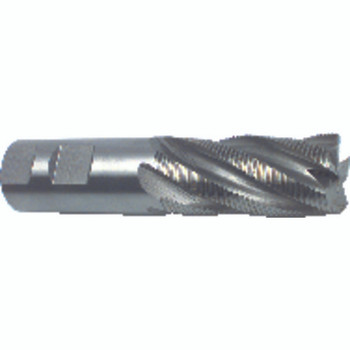

1" x 1" x 2" x 4 1/2" 5 Flute Single End HSSCo Roughing Center Cutting End Mill-Uncoated Series/List #4613 CV3244974

(No reviews yet) Write a Review
SKU:
F120078355
UPC:
686125449742
MPN:
44974
Condition:
New
Availability:
Usually Ships Out Within 2 Business Days
Price: $171.22

Description

M-428% Cobalt Fine Tooth Roughing End Mills Center Cutting 30° Helix TiCN Coating TiCN coating has the same lubricity as TiN but is more than 30% harder TiCN Coating is ideal for operating at aggressive feeds and speeds and for cutting extremely abrasive and difficult-to-cut materials. Fine tooth spacing gives 30% better tool life Pressure of cut is distributed over many teeth Less friction/less wear - cutting speeds & feeds remain the same as conventional end mills Better finish Breakage and cracks are eliminatedCountry of OriginUSAWarning-Proposition 65- For Californian Users onlyWARNING: This product contains a chemical known to the State of California to cause cancer or Birth defects. For more information go towww.P65Warnings.ca.gov Cutting Diameter (DC) 1" Application Roughing Connection Diameter Machine Side (DCONMS) 1" Tool Type Single End Depth of Cut Maximum (APMX) 2" Length Group Regular Overall Length (OAL) u200e4-1/2" Flute Type Fine Pitch Cutting Edge Material HSSCo Coolant Supply Property (CSP) External Coating Uncoated Style Roughing Flute Count (NOF) 5 Decimal Equivalent 1" Shank Type Plain Measurement Type Inch End Shape Center Cutting Series/List # 4613 Usable Length (LU) 2" Package Height 1.00000
